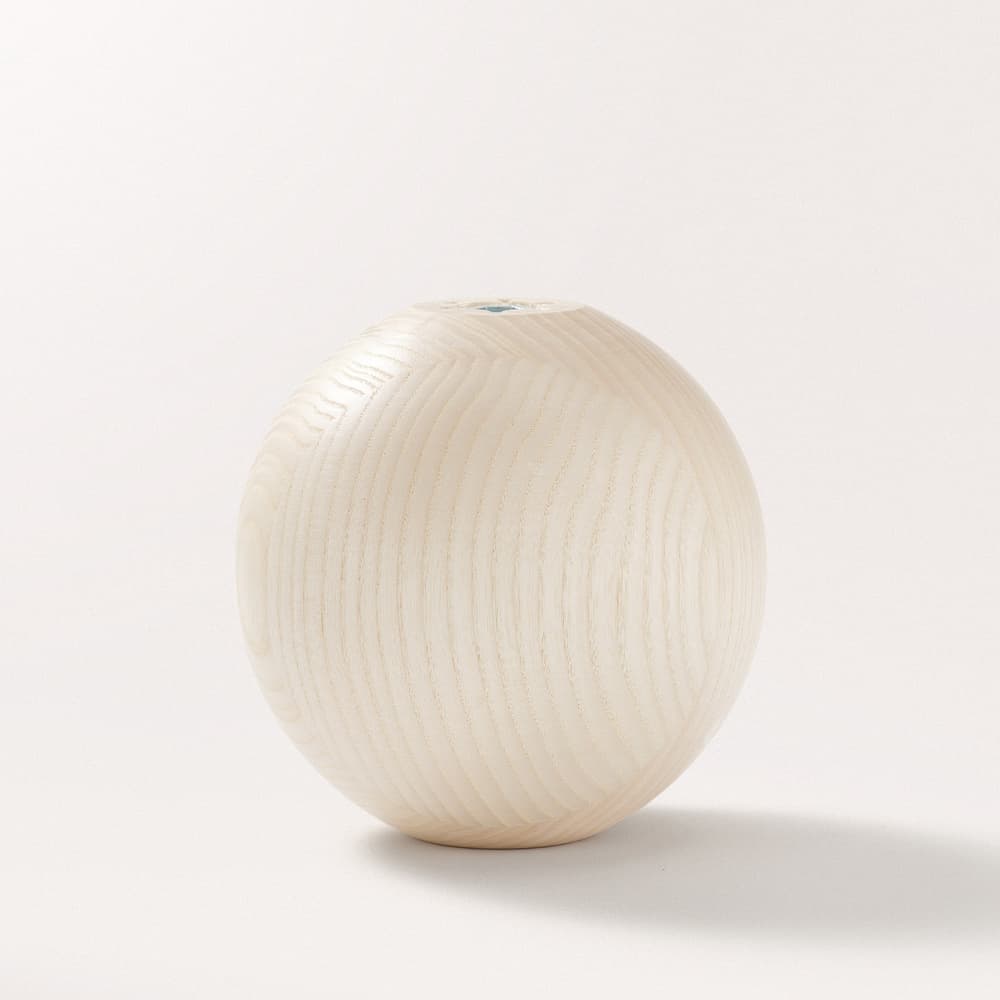

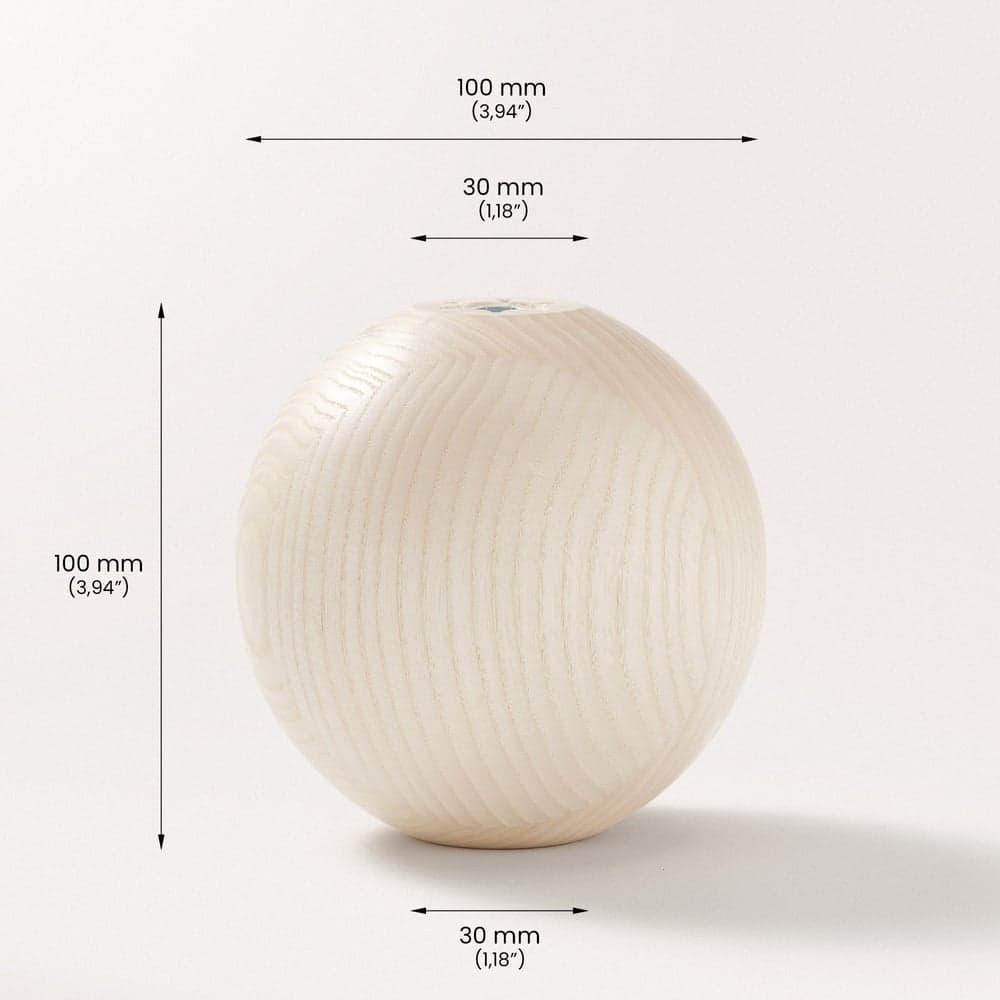

Otto 100 Ash natural

ASSEMBLY INSTRUCTIONS

2 different assembly options are listed below.
The correct fittings will be included depending on which furniture model is selected when adding the legs to cart.

Option 1:

Assembly with M8 (8mm) bolt, a standard fitting that is compatible with a wide range of furniture types.

1 - Attach the bolt into the leg by hand and apply the plastic washer over the bolt.

2 - Apply the plastic disc over the bolt and mount the leg to the furniture’s pre-drilled M8 thread.

Option 2:

Assembly with our Universal Fitting Plate, which is compatible with most furniture as long it has a flat wooden surface (or frame) which can take screws.

1 - Attach the plate with small screws in the corners of your furniture.

2 - Simply fasten the legs to the Universal fitting plate by hand.

NOTE

*Max load per leg is based on static, vertical weight and that the furniture is not subjected to abnormal stress or uneven load.

• Important that the furniture rests on an even and stable surface.

• Always attach your storage unit to a wall to avoid the risk of it falling over.

• As with all furniture legs - remember to put felt pads on to protect your floor.

• For sofa-beds - make sure the replaceable legs keep the exact same height as the original legs.

• If the material in your furniture is porous, it could be necessary to use longer and thicker screws than the ones included.
