Mounting instructions for knobs, handles and wall hooks

Below you can find assembly options for all our knobs, handles and wall hooks.

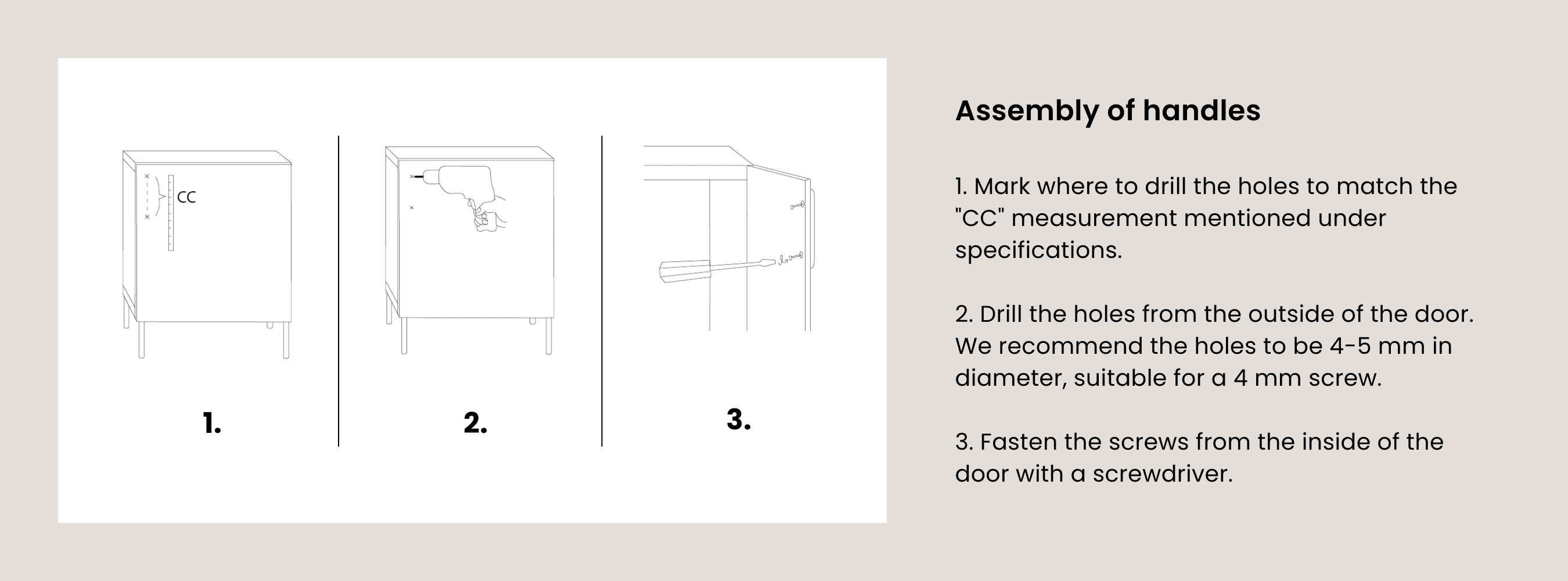

Assembly of handles

- Mark where to drill the holes to match the "CC" measurement mentioned under specifications.

- Drill the holes from the outside of the door. We recommend the holes to be 4-5 mm in diameter, suitable for a 4 mm screw.

- Fasten the screws from the inside of the door with a screwdriver.

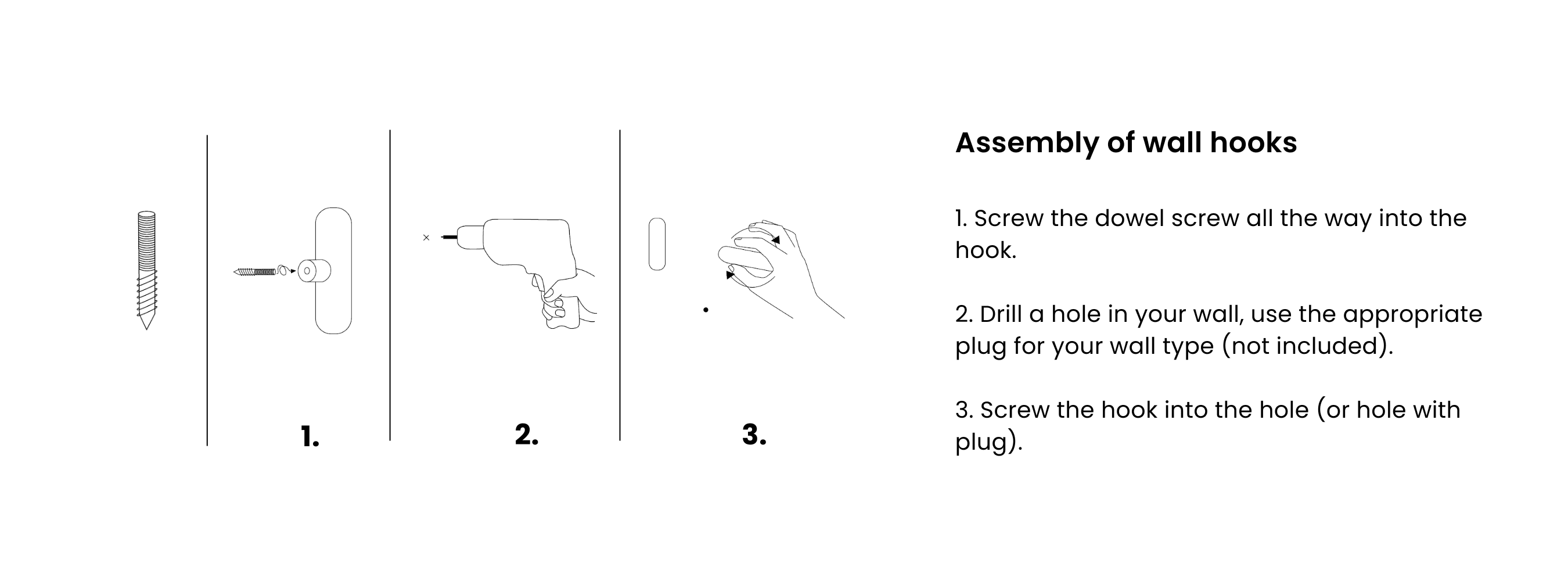

Assembly of wall hook

1 - Screw the dowel screw all the way into the hook.

2 - Drill a hole in your wall, use the appropriate plug for your wall type (not included).

3 - Screw the hook into the hole (or hole with plug).

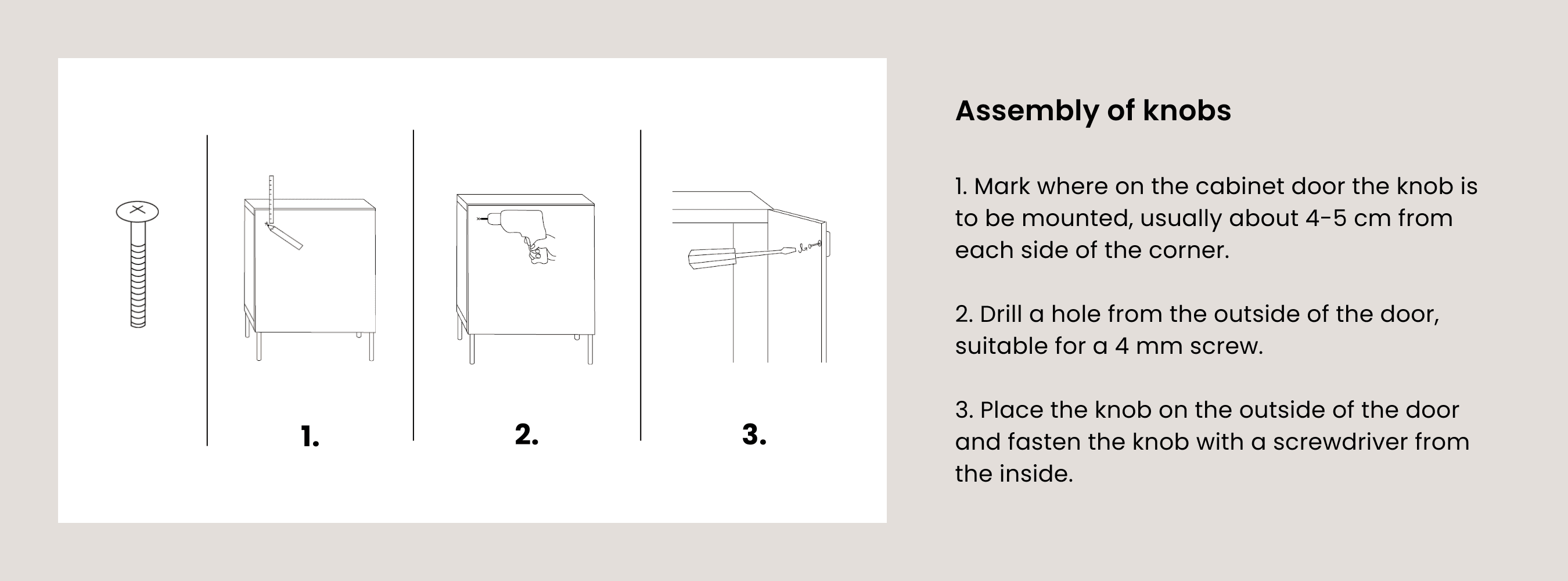

Assembly of knobs

- Mark where on the cabinet door the knob is to be mounted, usually about 4-5 cm from each side of the corner.

- Drill a hole from the outside of the door, suitable for a 4 mm screw.

- Place the knob on the outside of the door and fasten the knob with a screwdriver from the inside.
