Instructions de montage des poignées, boutons et crochets muraux

Ci-dessous, vous trouverez différentes options de montage pour tous nos boutons, poignées et crochets muraux.

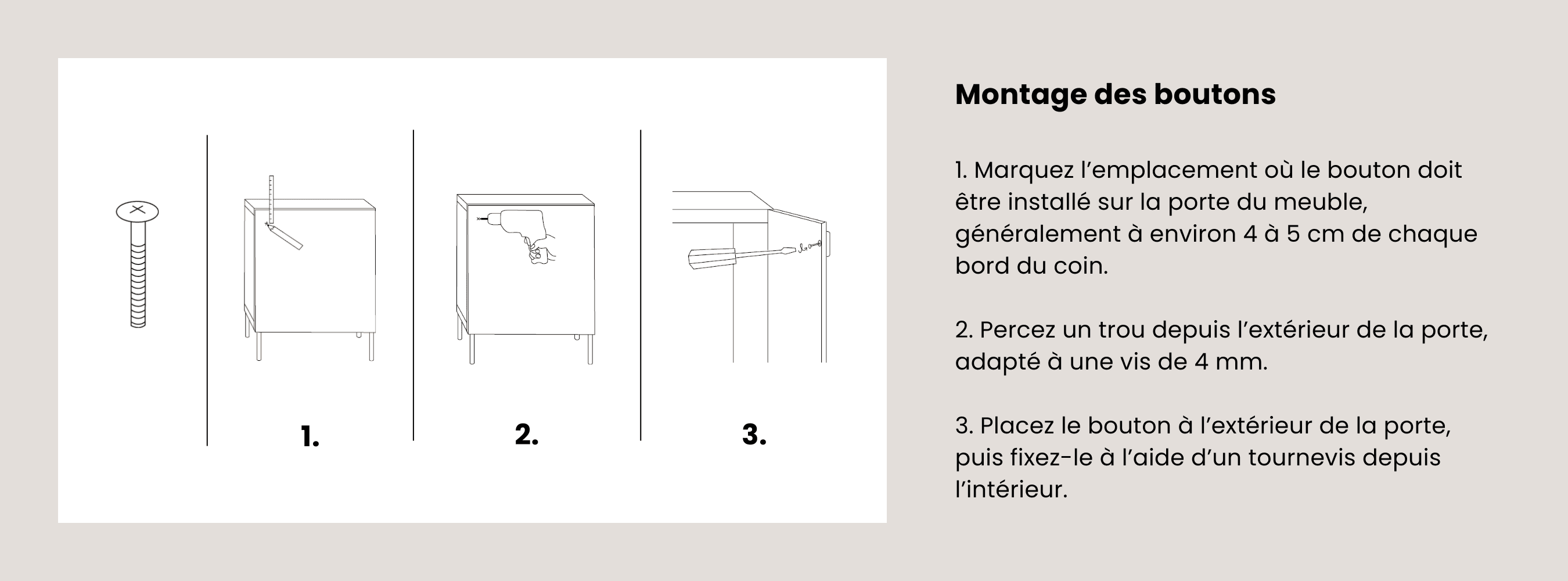

Montage des boutons

- Monté sur la porte du meuble, généralement à environ 4-5 cm de chaque côté de l'angle.

- Percez les trous depuis l'extérieur de la porte. Le diamètre des trous doit être de 4 à 5 mm, pour une vis de 4 mm.

- Fixez les vis depuis l'intérieur de la porte à l'aide d'un tournevis.

Assembly of knobs

1. Mark where on the cabinet door the knob is to be mounted, usually about 4-5 cm from each side of the corner. 2. Drill a hole from the outside of the door, suitable for a 4 mm screw. 3. Place the knob on the outside of the door and fasten the knob with a screwdriver from the inside.

Assembly of handles

1. Mark where to drill the holes to match the "CC" measurement mentioned under specifications. 2. Drill the holes from the outside of the door. We recommend the holes to be 4-5 mm in diameter, suitable for a 4 mm screw. 3. Fasten the screws from the inside of the door with a screwdriver.

Assembly of wall hooks

1. Screw the dowel screw all the way into the hook. 2. Drill a hole in your wall, use the appropriate plug for your wall type (not included). 3. Screw the hook into the hole (or hole with plug).

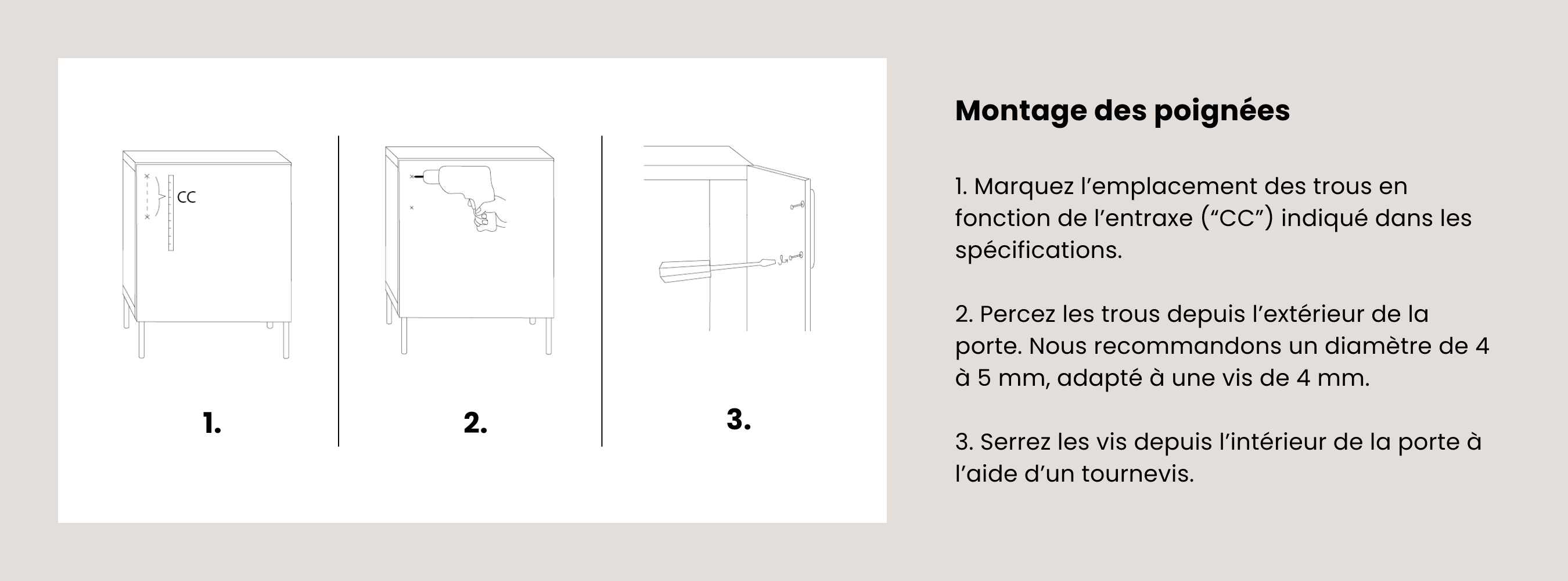

Montage de la poignée

- Marquez l'endroit où percer les trous pour qu'ils correspondent à la mesure "CC" mentionnée dans les spécifications.

- Percez les trous depuis l'extérieur de la porte. Le diamètre des trous doit être de 4 à 5 mm, pour une vis de 4 mm.

- Fixez les vis depuis l'intérieur de la porte à l'aide d'un tournevis.

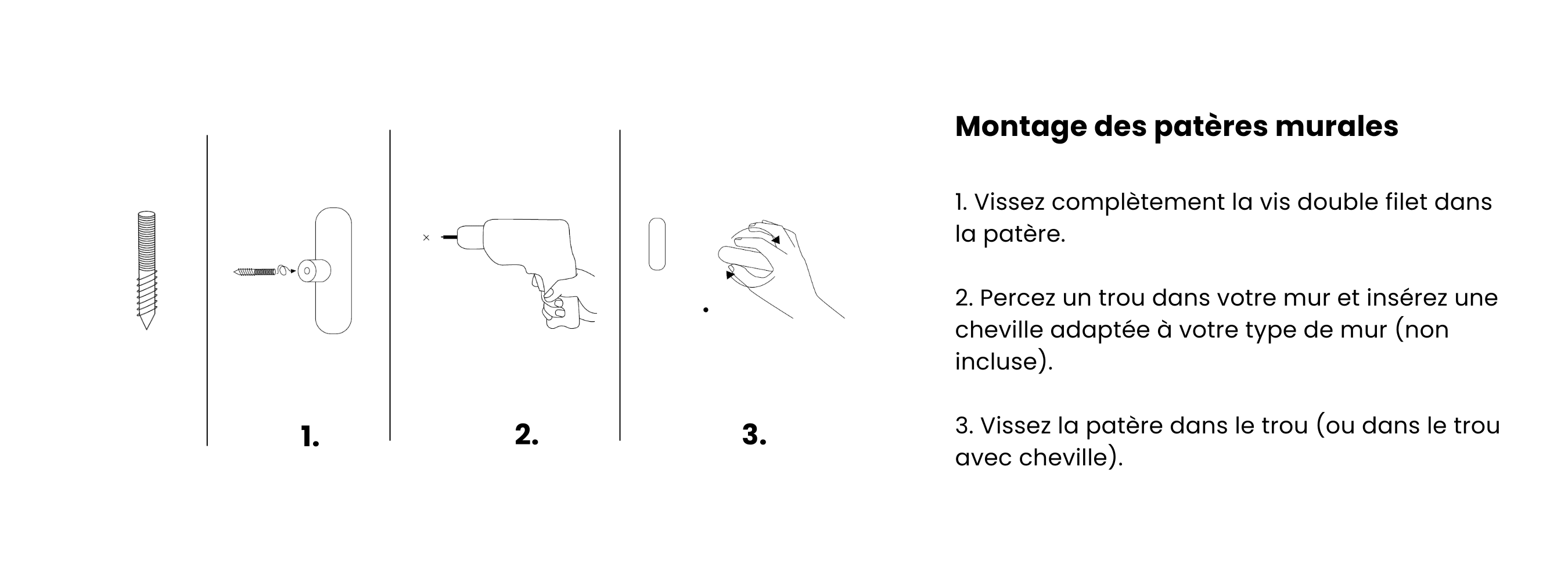

Montage du crochet mural

- Vissez à fond la vis de la cheville dans le crochet.

- Percez un trou dans votre mur, choisissez une cheville adaptée à votre type de mur (non fournie).

- Vissez le crochet dans le trou (ou le trou avec la cheville).
